All cells are Grade A and undergo rigorous quality testing using advanced equipment to ensure high performance and reliability. Each battery is equipped with a multi-layer protection system, safeguarding both the user and the battery during operation. No leakage issues — guaranteed.
We carefully balance all cells to ensure consistent internal resistance, voltage, and capacity across the pack, enhancing longevity and performance.

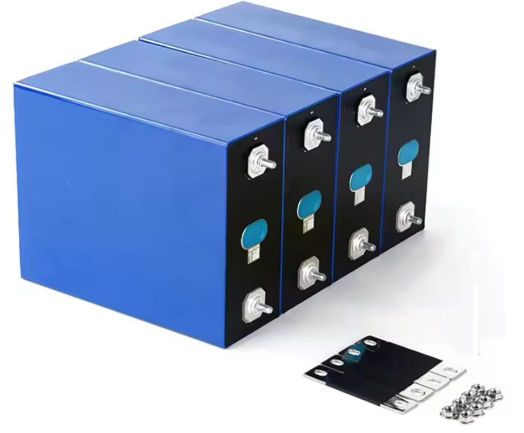

These LiFePO4 battery cells are easy to assemble and come with all the necessary screws and accessories.
Customers have the flexibility to build custom battery packs tailored to their needs. Ideal for applications such as trolling motors, boats, RVs, solar systems, marine use, home energy storage, UPS power supplies, and as replacements for traditional lead-acid batteries.
Specifications:
- Nominal Capacity: 314Ah
- Nominal Voltage: 3.2 V
- Nominal Energy: 1004.8 Wh
- End-of-charge Voltage: 3.65V
- Weight: 5600g +/- 300g
- Height (with terminals): 207.2mm +/- 0.5mm
- Height (without terminals): 204.6mm +/- 0.5mm
- Length: 173.7mm +/- 0.5mm
- Thickness: 71.7mm +/- 0.8mm
- Charge Temperature: 0C ~ 60C
- Discharge Temperature: -30C ~ 60C
- Storage Temperature: -20C ~ 45C
Shipping & Delivery Information:
-
Shipping Method: FedEx
-
Origin: Manufactured in China and shipped from USA
-
Estimated Delivery Time: ~15 business days
-
Free Shipping: Available to the 48 contiguous U.S. states
-
Not Deliverable To: P.O. Box addresses
